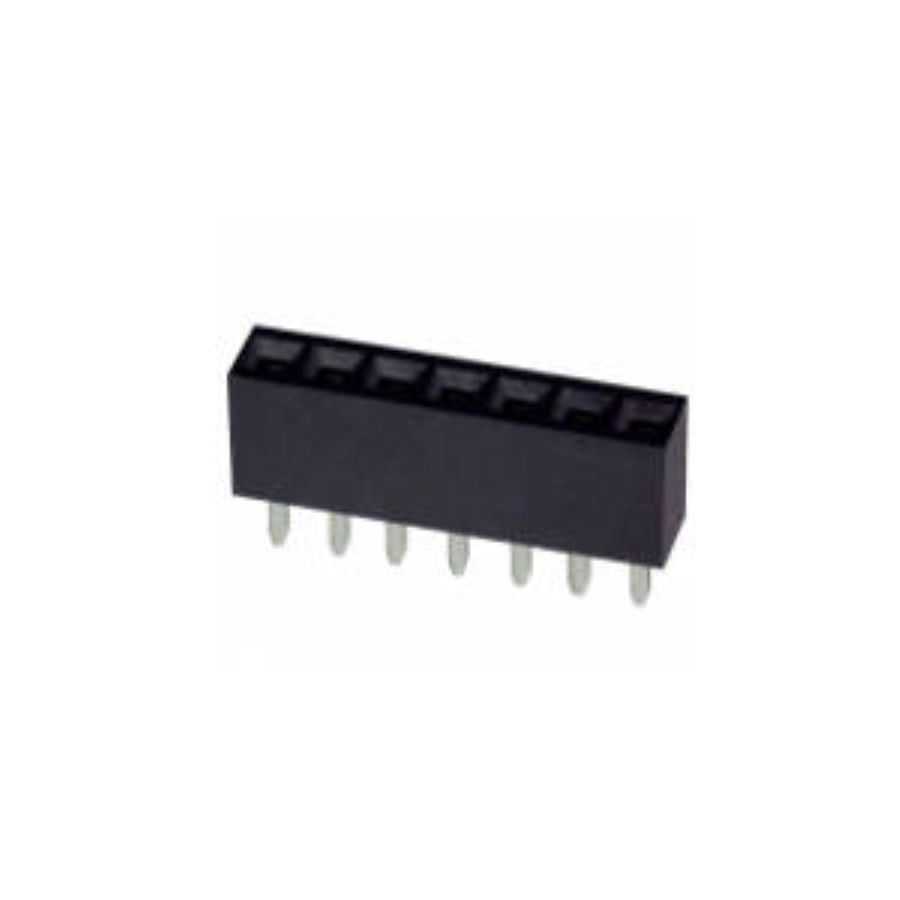

PPTC071LFBN-RC
制造商:
Sullins Connector Solutions
制造商物料号#:
PPTC071LFBN-RC
规格书:
描述:
连接器 Pin Pitch2.54mm Through Hole 行数:1 Black 触点电镀:Tin 间距:2.54 mm 针/孔位数:7
| 参数项 | 值 |
|---|---|
| 长度 | 18.3 mm |
| 宽度 | 2.5 mm |
| 端接 | Solder |
| 最高工作温度 | 105 °C |
| 最低工作温度 | -40 °C |
| 高度 | 8.5 mm |
| 包装方式 | Bulk |
| 额定电压值 | 250 V |
| 无铅 | Lead Free |
| RoHS | Compliant |
| 触点电镀 | Tin |
| 触点材料 | Bronze |
| 间距 | 2.54 mm |
| 额定电流 | 3 A |
| 颜色 | Black |
| 连接器类型 | Header, Socket |
| 针/孔位数 | 7 |
| 行数 | 1 |
| 绝缘材料 | Polyester |
| 外壳材料 | Plastic |
| 紧固类型 | Push-Pull |
| 触点样式 | Female Socket |
| 触点形状 | Square |
库存: 3427
销售商
pcbx
pcbx单价¥2.04244
总价¥2.04244
| 数量 | 单价 | 总价 |
|---|---|---|
| 1 | ¥2.04244 | ¥2.04244 |
| 10 | ¥1.72706 | ¥17.27060 |
| 25 | ¥1.63540 | ¥40.88500 |
| 50 | ¥1.54863 | ¥77.43150 |
| 100 | ¥1.46648 | ¥146.64800 |
| 300 | ¥1.38536 | ¥415.60800 |
| 500 | ¥1.30866 | ¥654.33000 |
| 1000 | ¥1.24610 | ¥1246.10000 |
| 3000 | ¥1.17728 | ¥3531.84000 |
| 5000 | ¥1.11227 | ¥5561.35000 |
| 10000 | ¥1.05923 | ¥10592.30000 |
